Embedded Antennas

Cost-Effective Connectivity in the New Era of IoT.

Cost-effective, Unmatched Connectivity for your Wireless Devices

Whether for Wi-Fi/Bluetooth or Multiband/Cellular IoT and M2M applications, the small size and form factor of Laird antennas make them easily concealable within a product’s enclosure, eliminating any negative impact on product aesthetics.

Need a custom antenna? Laird can customize our standard antennas, or create a custom antenna that is designed to your exact specifications and requirements.

Contact Sales



FlexMIMO antenna rendering

Download the Brochure

For more information on our collection of Embedded Antennas, please download our embedded brochure.

Download

Embedded Antennas catalog cover

2.4 / 5 GHz Wi-Fi and Bluetooth

As a long-established industry leader in wireless connectivity, Laird offers a broad embedded antenna portfolio for Wi-Fi and Bluetooth applications. Available in various configurations designed to save space, increase performance, and offer mounting flexibility, Laird's Wi-Fi and Bluetooth antennas are precisely designed to the unique requirements of embedded connectivity.

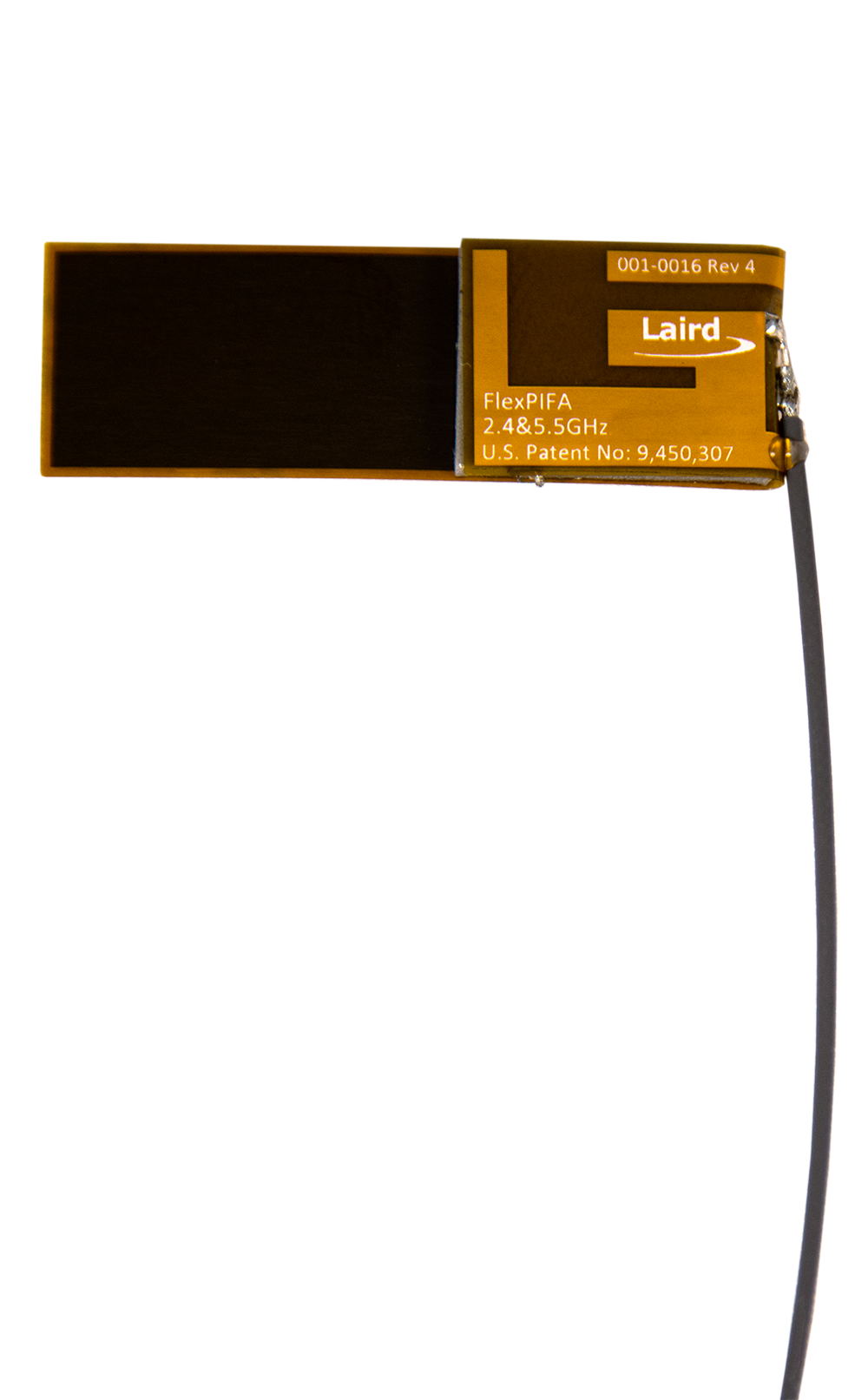

FlexPIFA

Industry-first, flexible, planar inverted-F antenna for curved surfaces 2.5-3 dBi gain. 2.4 GHz and dual-band 2.4/5.5 GHz.

LEARN MORE

FlexPIFA Antenna

NanoBlue

2.4 GHz planar antenna with 2 dBi of Gain and an integrated ground plane for ease of integration.

LEARN MORE

Nano Blue Series - Bluetooth Internal

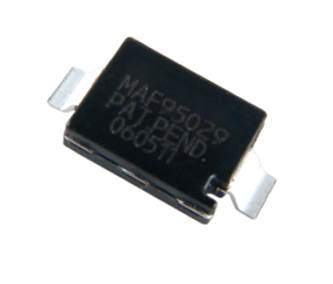

Blackchip

Surface-mount, cost-effective, tiny chip antenna. Linear polarized with >2 dBi gain @2.4-2.5 GHz and >3 dBi gain @ 4.9-6 GHz.

LEARN MORE

Internal Surface Mount Series

mFlexPIFA

FlexPIFA antenna for metal mounting with minimal detuning. 2.4 GHz and dual-band 2.4/5.5 GHz with 2 dBi of gain.

LEARN MORE

mFlexPIFA Antenna

NanoBlade

Vertically polarized, omnidirectional planar antenna with 2 dBi gain @2.24-2.5 GHz, 3.9 dBi gain @ 5.15-5.35 GHz, and 4 dBi gain @ 5.6 Ghz.

LEARN MORE

Nanoblade Series Antennas

D-Puck

Highly durable, cost-effective, small-scale metal antenna. Vertically polarized, with >3 dBi gain @ 2.4-2.5 GHz and >4 dBi gain @ 4.9-6 GHz.

LEARN MORE

D-Puck Antenna

FlexMIMO

The world's first flexible PIFA antenna for Wi-Fi MIMO applications with gain of 2-3.5 dBi.

LEARN MORE

FlexMIMO Dual-Band MIMO Antenna

Mini NanoBlade Flex

Flexible, onmidirectional PCB Mini NanoBlade. Vertically polarized, with 2.79 dBi gain @ 2.4 GHz and 3.38 dBi gain @ 5 GHz.

LEARN MORE

Mini Nanoblade Series Antennas

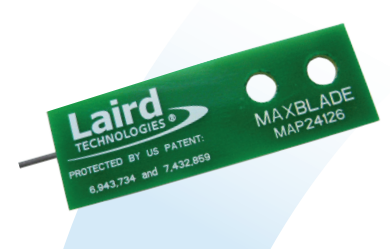

Max Blade

Bluetooth, Wi-Fi and WiMAX antenna covering various applications in a single antenna. Covers 2.3-6 GHz range, with gain up to 4dBi

LEARN MORE

Max Blade Series Antennas

NanoGreen

Bluetooth, Wi-Fi and WiMAX antenna covering various applications in a single antenna. Covers 2.3-6 GHz range, with gain up to 4.8 dBi

LEARN MORE

Nanogreen Series Antennas

Multiband/Cellular IoT and M2M

Laird's embedded antennas for IoT and M2M feature a broad range of supported frequencies in a small, durable form factor. Their PCB design allows them to be mounted inside any non-metallic housing, providing omnidirectional connection across several IoT and M2M bands.

Revie Pro

Linear and vertically polarized 868/900/1800/1900MHz antenna with 2.2 dBi gain @ 900 MHz and 3.8 dBi gain @ 2 GHz.

LEARN MORE

Revie Flex Series - LPWAN/ISM/IoT-Internal

Revie Prime

Adds UMTS band support, plus ISM, GSM, DCS, and PCS bands. 2.2 dBi gain @ 900 MHz and 3.8 dBi gain @ 2 GHz.

LEARN MORE

Revie Flex Series - LPWAN/ISM/IoT-Internal

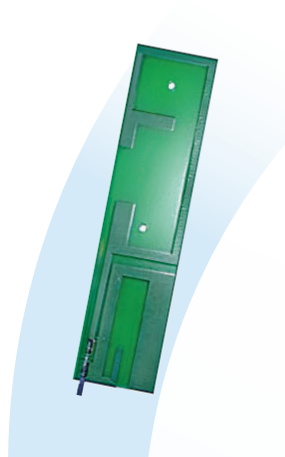

Revie Plex

Full-band Revie antenna at only .2mm thickness. 2.2 dBi gain @ 900 MHz and 3.80 dBi gain @ 2 GHz.

LEARN MORE

Revie Flex Series - LPWAN/ISM/IoT-Internal
